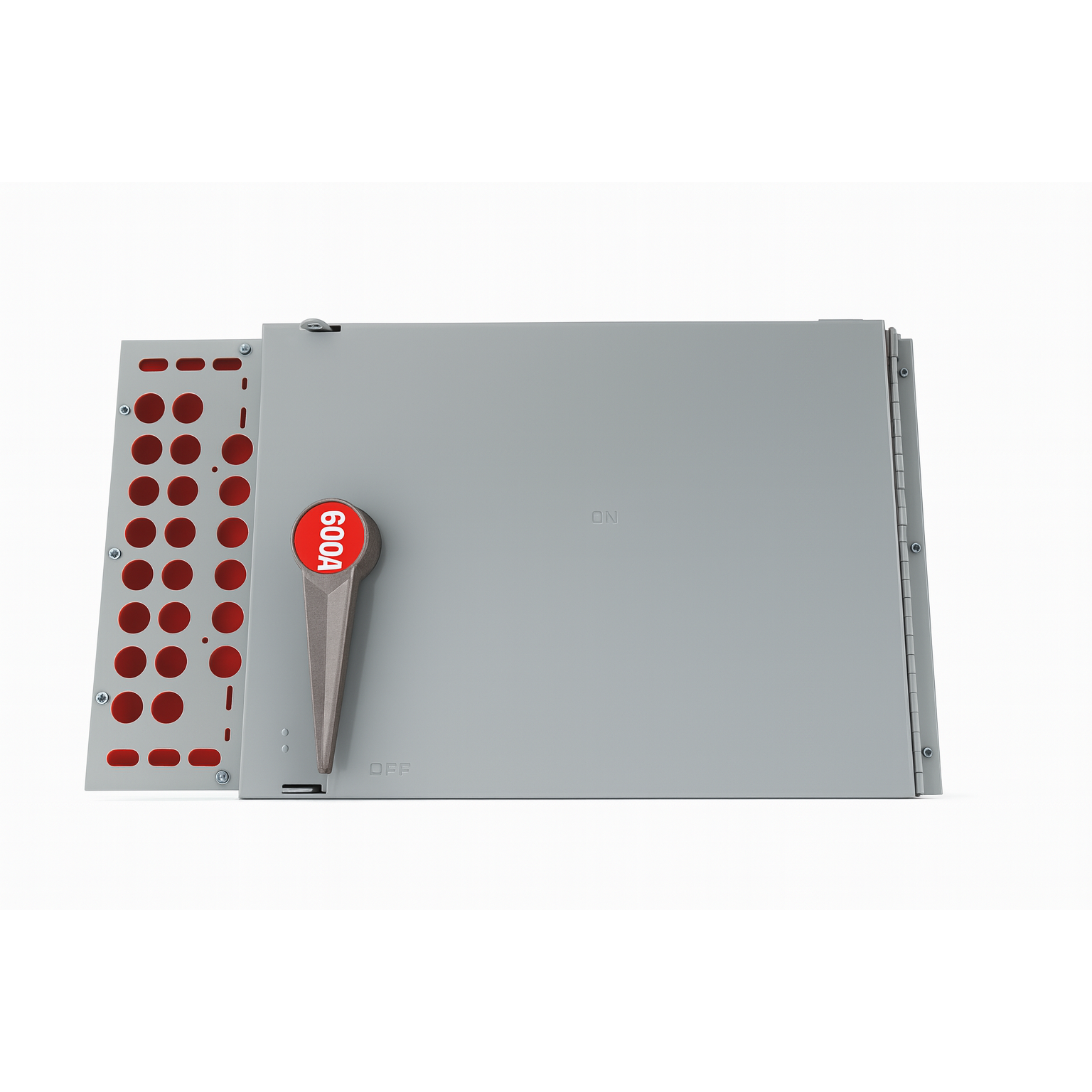

Sylvania QMBF P6036 – 600A, 600V, 3-Pole Fusible Panelboard Switch – Commander Series

Meet the Sylvania QMBF P6036 — a high-capacity 3-pole fusible panelboard switch engineered for demanding commercial and industrial power distribution. With a 600A, 600V rating, this device delivers robust overcurrent protection and dependable switching for large electrical loads. As a member of the Commander Series, it combines rugged durability with precise functionality, making it a trusted centerpiece for main distribution panels, switchboards, and panelboard assemblies that must manage significant amperage with minimal downtime.

Why this switch stands out

• Three-pole fusible design: Provides targeted, phase-by-phase protection, quickly interrupting fault currents and helping safeguard downstream equipment.
• High-capacity performance: 600A and 600V ratings meet the demands of heavy-duty power distribution where single-point failures can disrupt an entire facility.
• Rugged Commander construction: Built to withstand harsh industrial environments, reducing maintenance needs and extending service life.
• Direct compatibility with QMBF panelboard systems: Simplifies installation and minimizes the need for adapters or aftermarket components.
• Trusted brand reliability: Sylvania’s Commander lineage is recognized for longevity and consistent protection in critical electrical infrastructures.

Ideal applications and use cases

• Main distribution panels and switchboards that must control and protect large three-phase loads.
• Panelboard assemblies in factories, processing facilities, and large commercial complexes demanding predictable, uninterrupted power delivery.
• Systems with motor drives, HVAC equipment, and other high-current equipment that benefit from robust overcurrent protection.
• Retrofits or upgrades within QMBF-series environments where a proven, factory-integrated protection solution is preferred.

Key specifications at a glance

• Poles: 3
• Amp rating: 600A
• Voltage rating: 600V AC
• Part number: QMBFP6036
• Series: Commander QMBF
• Construction: Heavy-duty industrial-grade enclosure
• Compatibility: Fits QMBF panelboard and switchgear systems

How it protects and powers your operation

The fusible design delivers fast-acting, phase-specific protection against overloads and short circuits. When a fault occurs, the corresponding fuse links interrupt current flow, isolating the fault and preserving the rest of the distribution network. This capability is essential for reducing equipment damage, minimizing downtime, and maintaining safer operating conditions across large facilities. The sturdy enclosure and proven Commander construction further enhance protection by containing fault energy and facilitating safer field servicing.

Installation, compatibility, and practical tips

• Plan installation within a QMBF panelboard system to ensure optimal busbar alignment and electrical clearance.
• Use correctly sized fuse links designed for the QMBFP6036 to guarantee coordinated protection across all three phases.
• Follow applicable electrical codes and safety procedures during installation and servicing to maintain compliance and safety.
• When retrofitting, verify that the surrounding panelboard infrastructure and wiring can accommodate the 600A, 600V ratings for reliable protection.

For facilities that rely on heavy, uninterrupted power delivery, the Sylvania QMBF P6036 in the Commander Series offers a purpose-built, factory-integrated protection solution. It combines robust three-phase protection with streamlined compatibility, helping you minimize downtime and safeguard critical equipment across main distribution panels, switchboards, and large panelboard assemblies.
