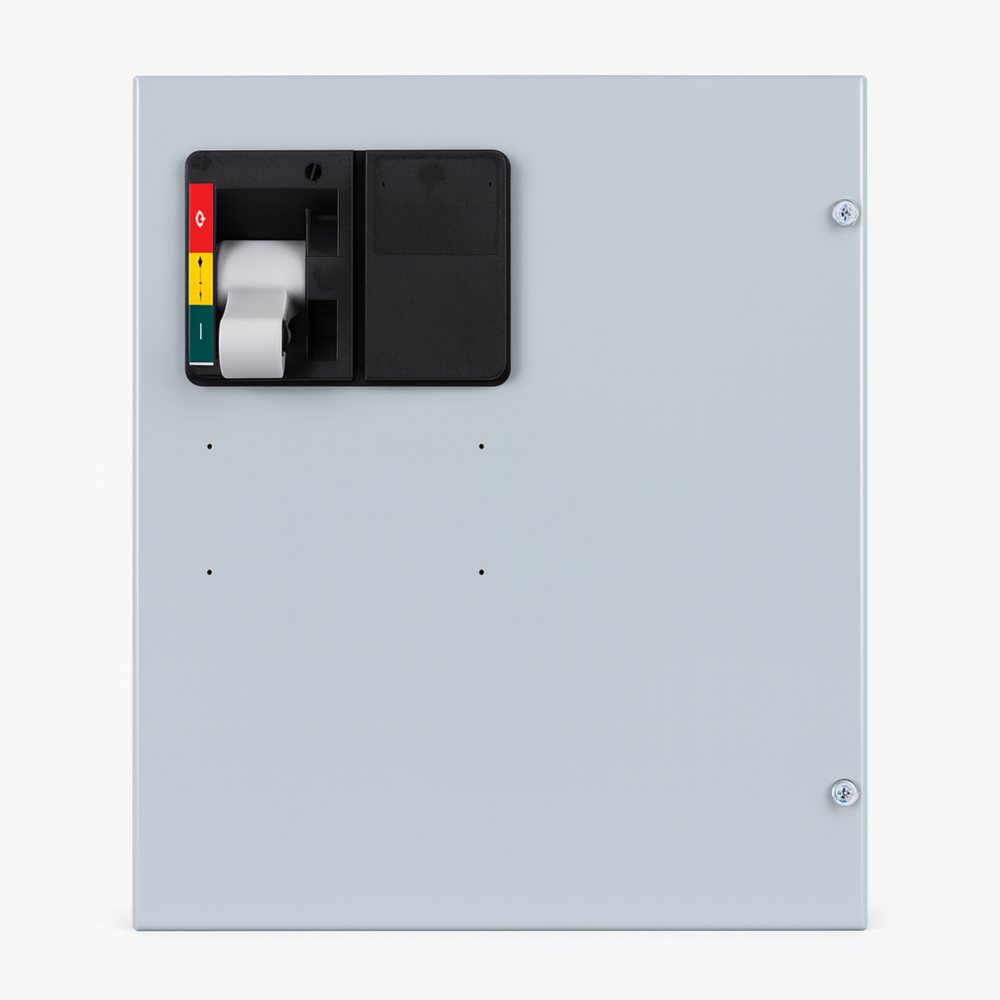

Eaton Freedom 2100 – Breaker MCC Bucket – 100A, 600V, 18" Height

The Eaton Freedom 2100 Breaker MCC Bucket is engineered to deliver dependable motor control and power distribution in demanding industrial environments. With a 100A, 600V rating and a compact 18" height, it fits tight MCC footprints without compromising protection for three‑phase equipment operating at 60Hz.

At the heart of this unit is a thermal‑magnetic circuit breaker that delivers reliable overload and short‑circuit protection. What sets the Freedom 2100 apart is its customizable KAIC capability—the breaker can be modified to meet your site’s exact fault current (kAIC) requirements, ensuring precise coordination and minimized nuisance trips in your electrical system.

Why this design matters in real-world plants

• Compact, space‑savvy footprint — an 18" height preserves valuable MCC space while maintaining full current capability, enabling cleaner, more organized electrical rooms.
• Field‑adjustable KAIC ratings — tailor the breaker to your facility’s fault current profile, reducing the risk of over‑ or under‑protection and simplifying downstream protection coordination.
• Modular bucket construction — streamlined installation and maintenance; modules can be swapped or upgraded with minimal wiring disruption, minimizing downtime during service or upgrades.
• Proven motor protection — thermal‑magnetic tripping provides fast, predictable response to overloads and faults, safeguarding motors and driven equipment from damage.
• Designed for standard industrial power — 3‑phase, 60Hz operation aligns with common plant power systems and motor applications, easing integration with existing infrastructure.

Practical use cases and benefits

• New MCC installations where space is at a premium and precise fault‑current coordination is essential.
• Retrofits or upgrades to existing MCC buckets that require updated KAIC compatibility without reworking the entire panel.
• Facilities needing configurable protection for diverse motor loads, pumps, conveyors, or fans within a single modular bucket approach.

Ideal for: plant engineers, electrical contractors, and OEM integrators seeking a reliable, adaptable breaker MCC bucket that delivers precise protection, space efficiency, and easy future upgrades.

Specification snapshot

• Brand / Model: Eaton Freedom 2100
• Amp Rating: 100A
• Voltage Rating: 600V, 3‑Phase, 60Hz
• Height: 18"
• Breaker Type: Thermal‑magnetic (customizable)
• KAIC Options: Breaker can be modified to meet required fault current ratings (customer‑specified)
• Application: Motor control centers, power distribution, industrial equipment protection
